9SDH-II 串級式加速器
製造:
National Electronic Corporation(NEC)
型號:
9SDH-2
序號:
014
主要操作者:
游文倉
簡介

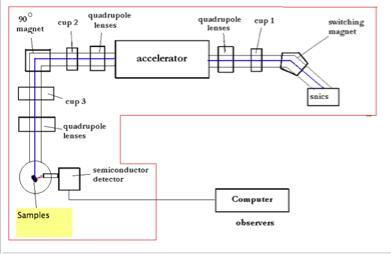

9SDH-II tandem accelerator was designed and developed by the American NEC for accelerating charged particles, and the highest terminal voltage is 3 MV. The main parts of the 9SDH-II Tandem Accelerator consist of four terms:

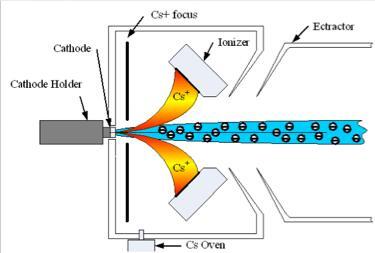

1. SNICS (Source of Negative Ion by Cesium Sputtering): This solid ion source can be used to create many negative ions ( from hydrogen to gold)

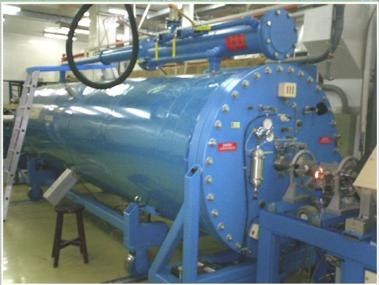

2. Accelerator: The accelerating tube and the high voltage size are usually located in a high-pressured tube filled with high-pressured insulating gas--SF6
3. Switch Magnets: We can use switch magnets to select the ion beam we want
4. Quadrupole: Used to focus the ion beams
本實驗室現可提供之離子源
1. H, B, C, O, F, Al, Si, P, Cr, Mn, Fe, Co, Ni, Cu, Ge, Sn, Pt, Au
2. P.S. 如果需要其他離子源，請與本實驗室連絡
離子源能量
0.5MeV~ more than 6 MeV
